Propensity Score Diagnostics

Lucy D’Agostino McGowan

Wake Forest University

Checking balance

• Love plots (Standardized Mean Difference)
• ECDF plots

Standardized Mean Difference (SMD)

\[\LARGE d = \frac{\bar{x}_{treatment}-\bar{x}_{control}}{\sqrt{\frac{s^2_{treatment}+s^2_{control}}{2}}}\]

SMD in R

Calculate standardized mean differences

library(halfmoon)
library(tidyverse)

smds <- tidy_smd(
  df,
  .vars = c(confounder_1, confounder_2, ...),
  .group = exposure,
  .wts = wts # weight is optional
)

SMD in R

Plot them! (in a Love plot!)

ggplot(
  data = smds,
  aes(
    x = abs(smd),
    y = variable,
    group = method,
    color = method
  )
) +
  geom_love()

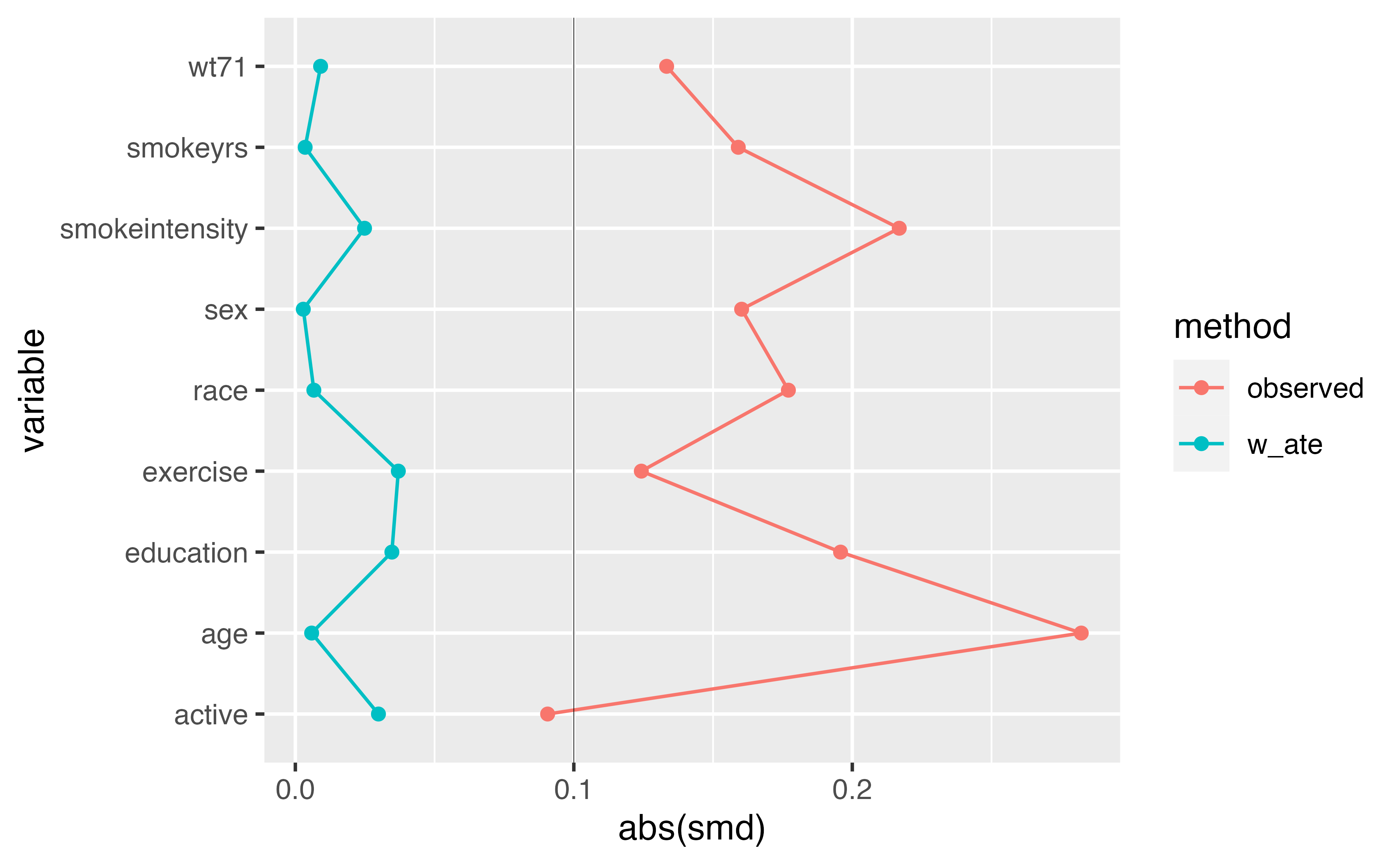

Love plot

Your turn 1

10:00

Create a Love Plot for the propensity score weighting you created in the previous exercise

ECDF

For continuous variables, it can be helpful to look at the whole distribution pre and post-weighting rather than a single summary measure

Unweighted ECDF

ggplot(df, aes(x = wt71, color = factor(qsmk))) +
  geom_ecdf() +
  scale_color_manual(
    "Quit smoking",
    values = c("#5154B8", "#5DB854"),
    labels = c("Yes", "No")
  ) +
  xlab("Weight in Kg in 1971") +
  ylab("Proportion <= x")

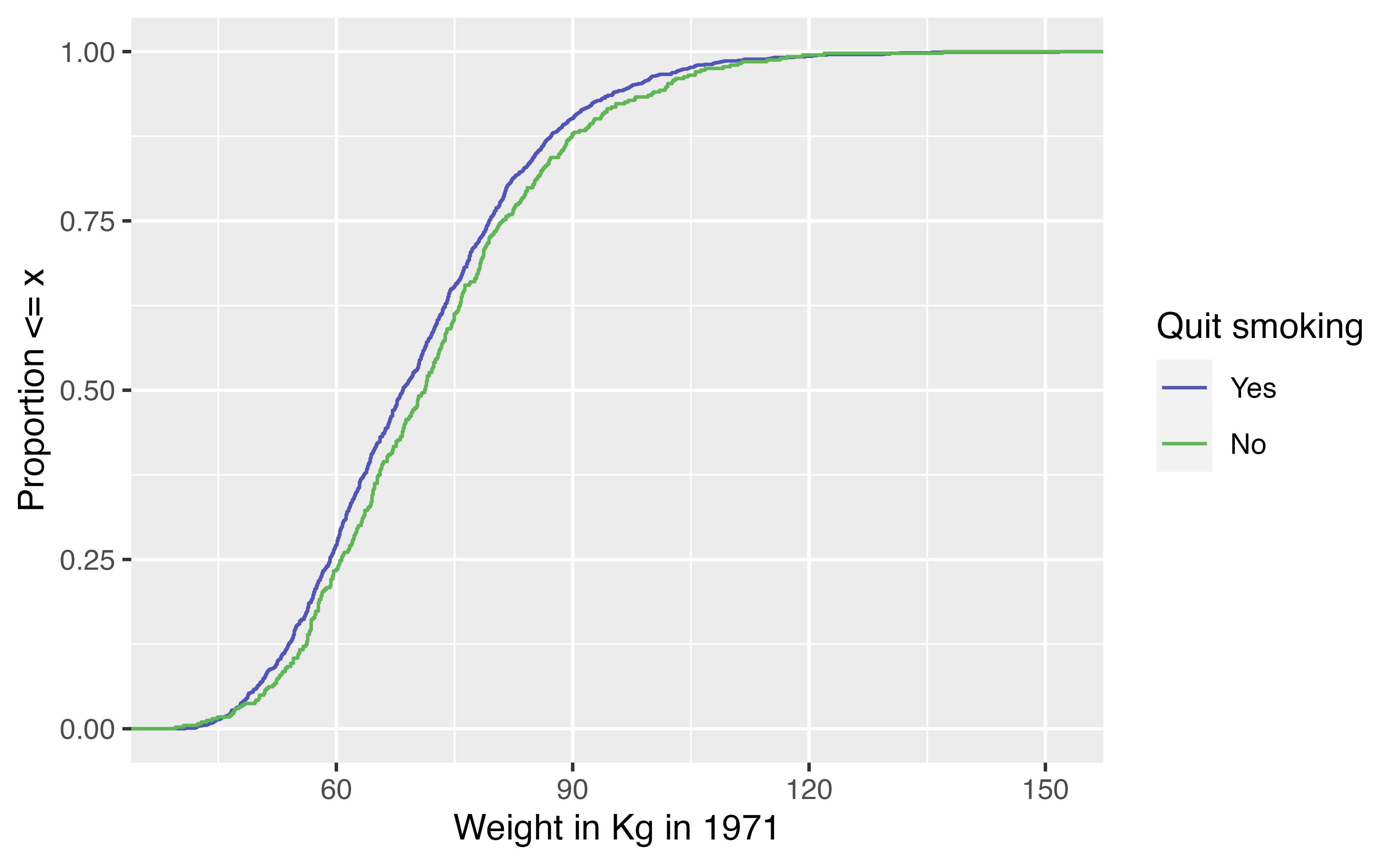

Unweighted ECDF

Weighted ECDF

ggplot(df, aes(x = wt71, color = factor(qsmk))) +
  geom_ecdf(aes(weights = w_ate)) +
  scale_color_manual(
    "Quit smoking",
    values = c("#5154B8", "#5DB854"),
    labels = c("Yes", "No")
  ) +
  xlab("Weight in Kg in 1971") +
  ylab("Proportion <= x (Weighted)")

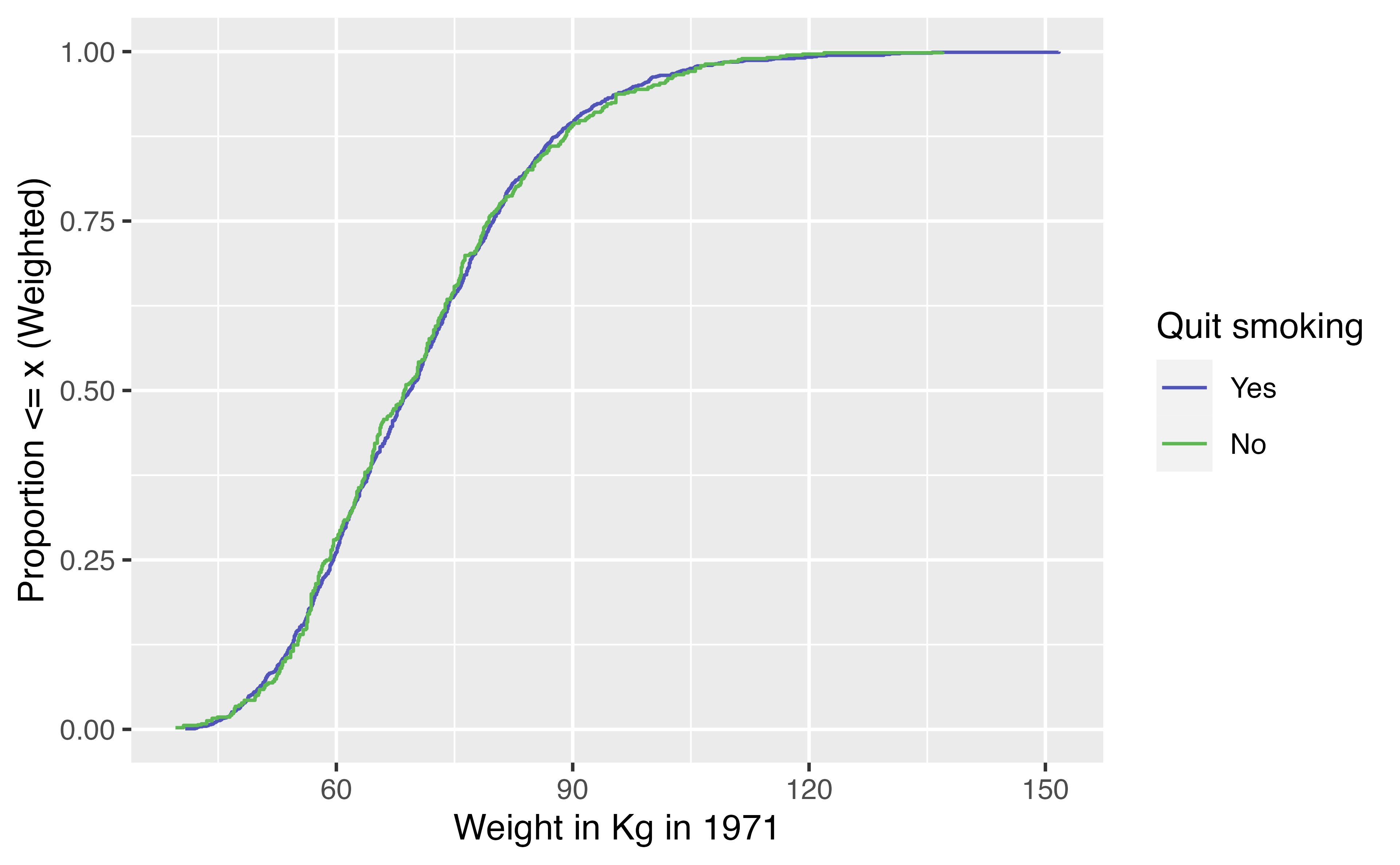

Weighted ECDF

Your turn 2

10:00

Create an unweighted ECDF examining the park_temperature_high confounder by whether or not the day had Extra Magic Hours.

Create a weighted ECDF examining the park_temperature_high confounder

Bonus! Weighted Tables in R

1. Create a “design object” to incorporate the weights

library(survey)

svy_des <- svydesign(
  ids = ~ 1,
  data = df,
  weights = ~ wts
)

2. Pass to gtsummary::tbl_svysummary()

library(gtsummary)
tbl_svysummary(svy_des, by = x) |>
  add_difference(everything() ~ "smd")
# modify_column_hide(ci) to hide CI column

Characteristic	0, N = 1,5651	1, N = 1,5611	Difference2
WEIGHT IN KILOGRAMS IN 1971	69 (60, 80)	69 (59, 79)	0.01
0: WHITE 1: BLACK OR OTHER IN 1971			0.01
0	1,359 (87%)	1,352 (87%)
1	206 (13%)	209 (13%)
AGE IN 1971	43 (33, 52)	43 (33, 53)	-0.01
0: MALE 1: FEMALE			0.00
0	764 (49%)	764 (49%)
1	802 (51%)	797 (51%)
NUMBER OF CIGARETTES SMOKED PER DAY IN 1971	20 (10, 25)	20 (10, 30)	0.02
YEARS OF SMOKING	24 (15, 33)	24 (14, 33)	0.00
IN RECREATION, HOW MUCH EXERCISE? IN 1971, 0:much exercise,1:moderate exercise,2:little or no exercise			0.04
0	302 (19%)	294 (19%)
1	665 (42%)	691 (44%)
2	599 (38%)	576 (37%)
IN YOUR USUAL DAY, HOW ACTIVE ARE YOU? IN 1971, 0:very active, 1:moderately active, 2:inactive			0.03
0	700 (45%)	684 (44%)
1	718 (46%)	738 (47%)
2	147 (9.4%)	138 (8.9%)
1 Median (IQR); n (%)
2 Standardized Mean Difference
